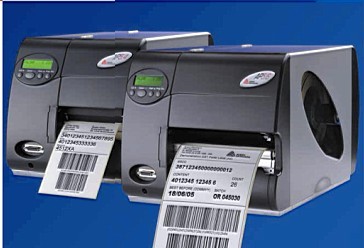

AP5.4 詳情
打印機規格
打印頭 Flat head
直接傳印/熱轉移  /

解像度 203/300 dpi
打印寬度 Max. 105 mm
打印速度 50-200 mm/sec
打印長度 5-1000 mm
物料
物料類型 Label rolls, material suitable for thermal and thermal transfer printing, plastic foil, PE, PP, PVC, PA
物料厚度 60 - 240 g/m²
寬度 up to 120 mm
長度 10 mm (0,4") bis 1.143 (45")
物料外徑 up to 210 mm
物料內徑 38,1 - 100 mm
炭帶規格
炭帶寬度 25 - 114
炭帶長度 length according to foil type up to 500m
炭帶外徑 max. 80 mm
紙蕊直徑 25 mm
塗層 color side inside (outside possible)
炭帶節省功能
字體
標準 17 fonts including OCR-A and OCR-B, 2 scalable fonts, True Type fonts supported, scaling in X/Y-direction up to faktor 8, rotation 90°, 180°, 270°
條碼
標準 EAN 8 and EAN 13 with add on 2 and 5, UPC-A, UPC-E, Code 39, Code 39 Ratio 3:1 and Ratio 2,5:1, Code ITF, Codabar, UPS Code 128, Code 2/5, Code 2/5 1, Code 2/5 5, Code 2/5 Interleaved Ratio 1:3, Code 2/5 Matrix Ratio 1:2,5; Code 2/5 Matrix Ratio 1:3; Code MSI, Code EAN 128, Postcode (Guide and Identity Code), UPS Code 128, all barcodes scalable in 16 widths and the hight.
二維 Data Matrix Code, Maxi Code, PDF 417, Codablock F
介面
Parallel Centronics

Serial RS 232

RS 422

RS 485

乙太網

USB Slave 1.1

其他
PCMCIA SRAM卡插槽 -
處理器位元 32
機器語言 ZPL
驅動程式 Windows 95/98/2000/NT/XP
配件
Self-initialising light sensor -
機器語言 EASY PLUG

Stacker (Jumbo/Power) option
回卷器 option
切刀 option
剝離器 option
Full size light sensor option
Reflex sensor option
Real time clock option
Print server
Offline kit
Integrated tear-off edge
AP 5.4 完備版配件
回卷器 option
剝離器(需備內置回卷器) option
切刀 option
外置信號輸入 option
尺寸
(長 x 闊 x 高) mm 272 x 260 x 462
重量
公斤 14
